cable D03VV-F 3x0,75/3,2

Cable to SHR-1 and SHR-2f probes

3x 0.75 mm2 with a certificate for drinking water, 1m

More

Manufacturer: ELKO EP

Ord. code: 209970500106
EAN: 8595188165884

Availability: More than 200 pcs
Selling price 1,10 € incl. VAT -27%
Price excl. VAT 1 €
Your price: 0,80 € incl. VAT
m

Description

D03VV-F 3x0.75/3.2 | Accessories for level switches

  • Cable to probes SHR-1 and SHR-2, 3x 0.75 mm2 (AWG 18) with a certification for drinking water, 1m (39.37“).

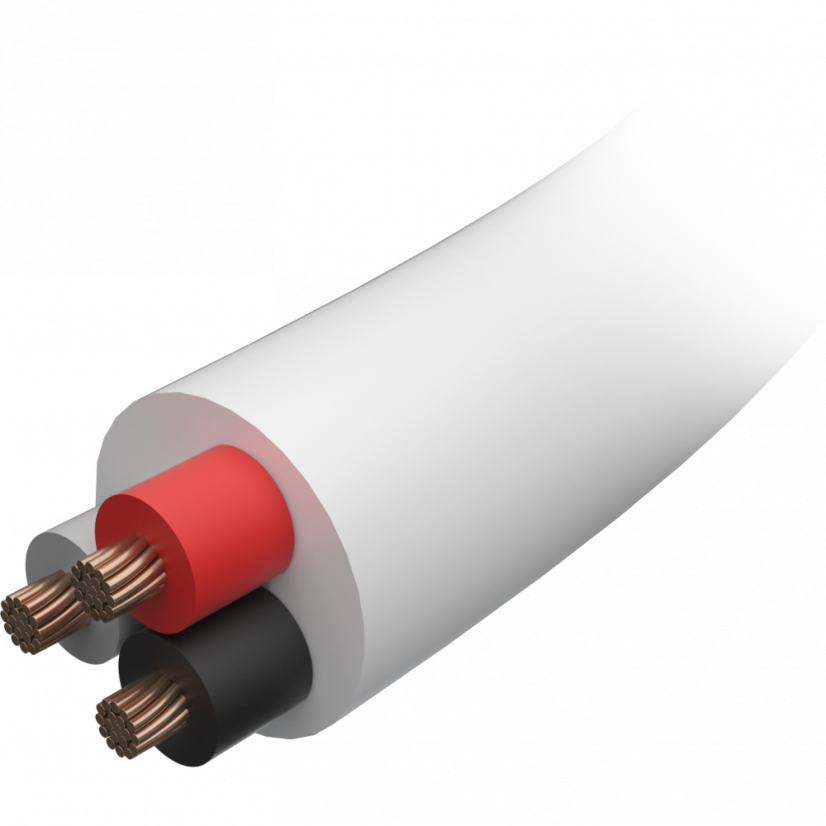

  • Construction:
    • bright copper stranded core
    • core insulation of special PVC
    • a sheath of special PVC.
  • technical specification and use:
    • the product meets requirements for direct and permanent contact with drinking water according to § 5 of the Act. 258/2000 Decree of the Ministry of Health. 409/2005 Sb., On hygienic requirements for products coming into direct contact with drinking water and water treatment
  • usable up to 70°C (158°F)
  • suitable for submersible conductivity probes for the boreholes, wells and tanks
  • suitable for probes used for level detection of conductive liquids.
  • cable capacity is max. 12.3nF / 100m (328´)

More information

  • Rated voltage: 300 / 300V
  • Test voltage: 2kV
  • Capacity: max. 12.3 nF / 100m
  • Core diameter with insulation: 3.2mm
  • Overall cable diameter: 8.1mm
  • Cross-section: 0.75mm2
  • Length: 1m

Price for 1m
