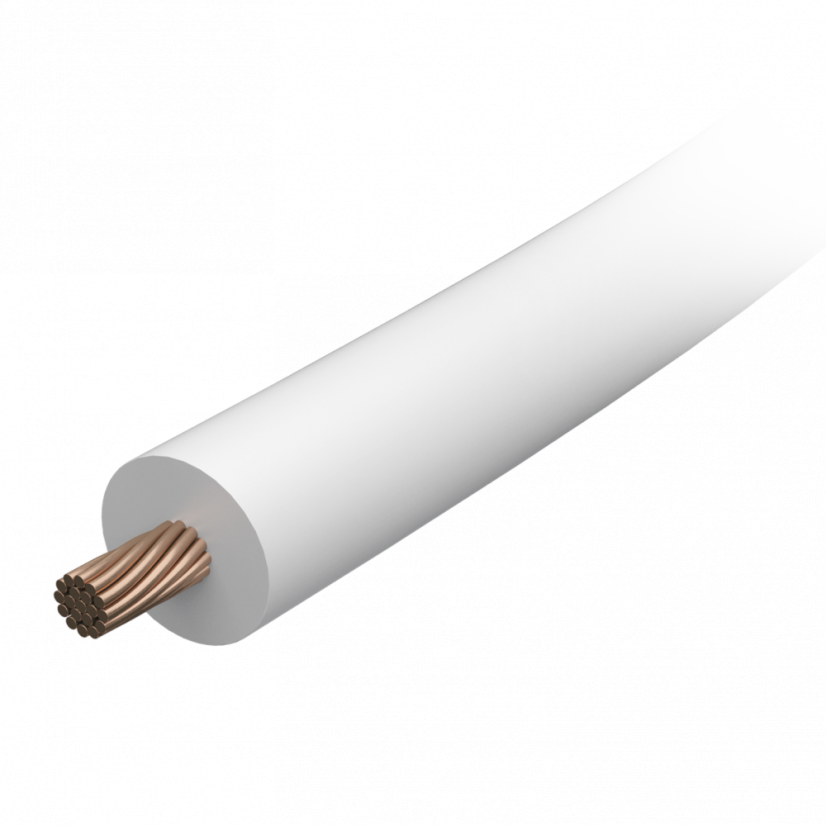

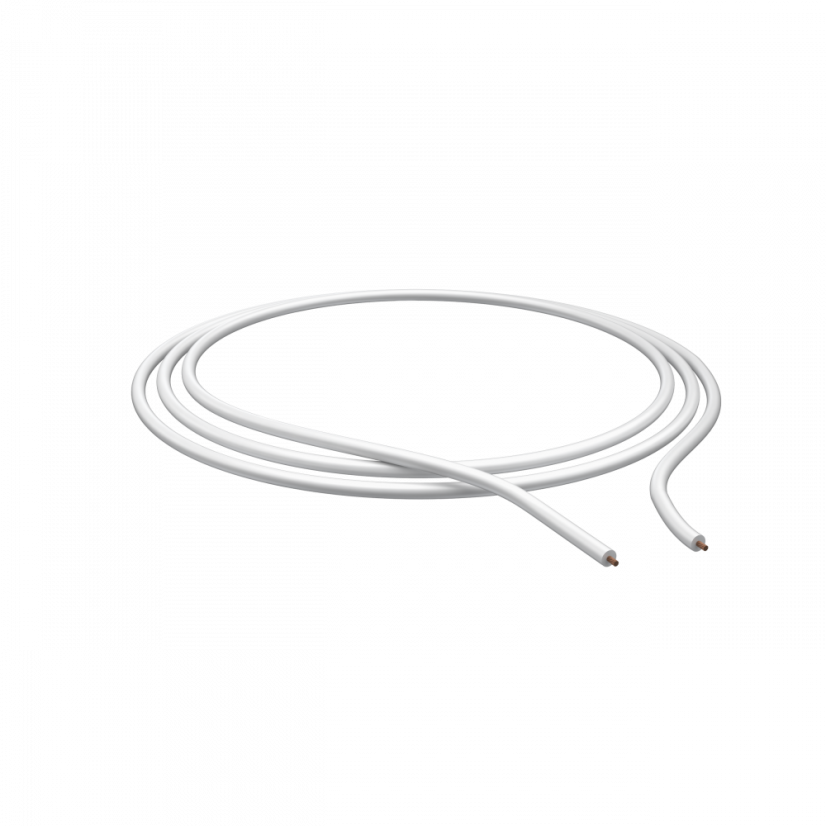

conductor D05V-K 0,75/3,2

Cable to probes SHR-1 and SHR-2

1x 0.75 mm2 with a certificate for drinking water, 1m

More

Manufacturer: ELKO EP

Ord. code: 6594
EAN: 8595188165945

Availability: More than 200 pcs
Selling price 0,40 € incl. VAT -25%
Price excl. VAT 0,25 €
Your price: 0,30 € incl. VAT
m

Description

D05V-K 0.75/3.2 | Accessories for level switches

  • Cable to probes SHR-1 and SHR-2, 3x 0.75mm2 (AWG 18) with a certification for drinking water, 1m (39.37“)
  • construction: - the bright copper stranded core - insulation of special PVC
  • technical specification and use:
    • the product meets requirements for direct and permanent contact with drinking water according to § 5 of the Act. 258/2000 Decree of the Ministry of Health. 409/2005 Sb., On hygienic requirements for products coming into direct contact with drinking water and water treatment
    • usable up to 70°C (158°F)
    • suitable for probes used for level detection of conductive liquids.

Technical parameters

  • Rated voltage: 300 / 500V
  • Test voltage: 2kV
  • Capacity: max. 12.3 nF / 100m
  • Conductor diameter with insulation: 3.2mm
  • Cross section: 0.75mm2
  • Length: 1m


Price for 1m
