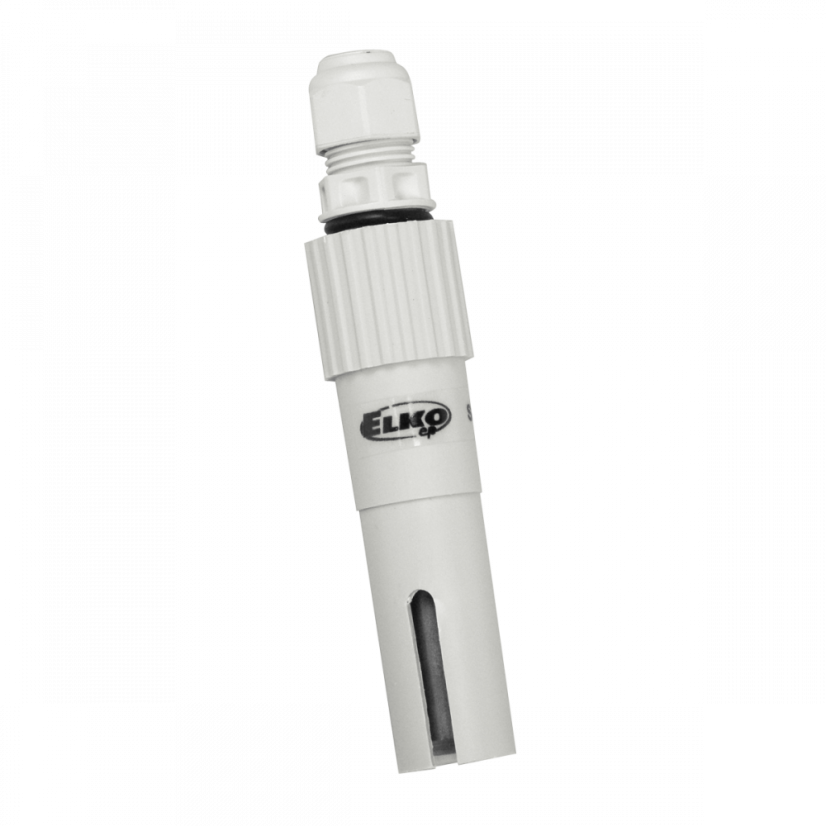

SHR-2 probe

Probe for level relay
star 1 star 2 star 3 star 4 star 5 (2)Rating value is 5 of 5

3D MODEL
Manufacturer
Ord. code
209970800003
EAN
8595188111263
Availability: More than 200 pcs
Selling price
10,20 €
incl. VAT
-24%
Price excl. VAT 6,45 €
Your price
7,80 € incl. VAT

pcs

Description

SHR-2 | Level probe

  • detection sensor is an electrode, which in connection with the switchable device is used for level detection for example in wells, tanks,...
  • to be used in electric conductive fluids and mechanically polluted fluids with temperature: +1...+80°C
  • suitable for use in drinking water
  • stainless steel one-pole electrode resides in PVC cover, intended for tank wall mounting or mounting by socket
  • to ensure the correct function of the sensor, it is necessary to have the electrode without dirt which could disable the connection of the electrode and fluid and this lead to malfunction
  • max. wire profile: 2.5 mm2 recommended wire: D05V-K0.75 / 3.2
  • installation:
    • conductor wire is connected by attaching between the two brass screws and the stainless steel electrode
    • the conductor is caulked by bushing Pg7 with protection degree IP68
  • weight: 48.6g
  • dimensions: max. diameter 21mm, length 96mm
