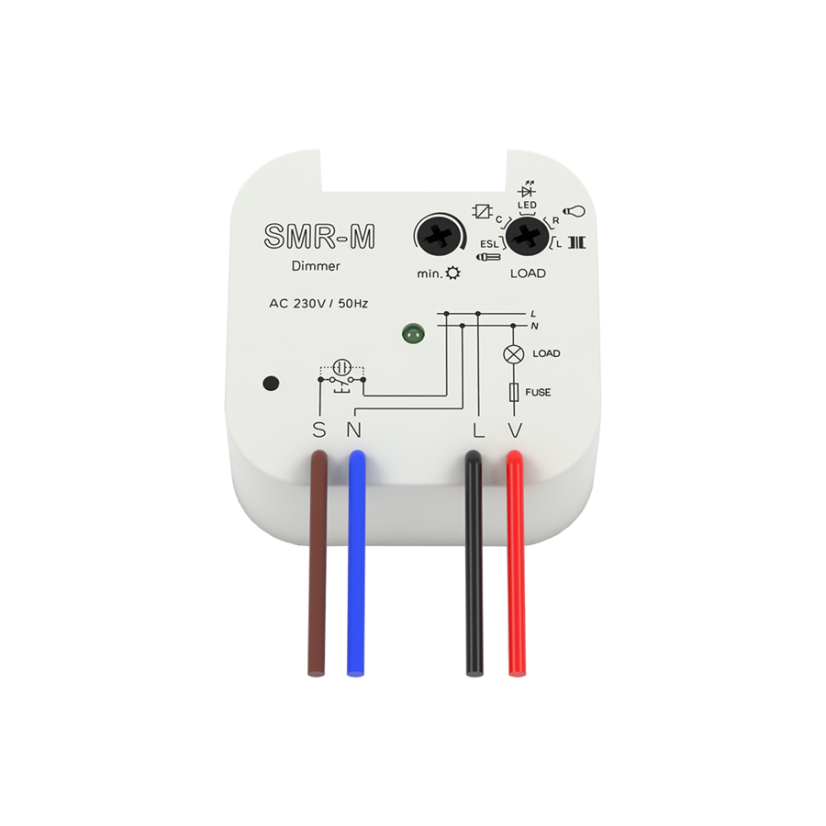

SMR-M | Universal dimmer

• Universal dimmer with load adjustment (R, L, C, ESL, LED) brings the possibility of dimming 90% of dimmable light sources on the market.
• Designed for dimming light bulbs, halogen lamps with wound or electronic transformer, dimmable energy-saving bulbs and dimmable LEDs
• Allows continuous adjustment of light intensity with the button or buttons in parallel
• When switched off, the set brightness level is stored in memory and when switched on again, the brightness is already set to this value
• The type of light source is set by a switch on the instrument panel
• Setting the minimum brightness with the potentiometer on the instrument panel eliminates the flickering of different types of energy-saving bulbs
• Button-controlled dimmer intended to be installed in an installation box into the existing electrical wiring.
• Protection against excessive temperature inside the device - switches off the output.

More information

• Power terminals: x
• Connection: 4-wire with "ZERO"
• Supply voltage: AC 230V / 50Hz
• Supply voltage tolerance: -15%; + 10%
• Power consumption (apparent): max. 1.5VA
• Power indication: green LED
• Control voltage: AC 230V
• Operating temperature: -20°C to +35°C
• Operating position: any
• Mounting:  free at connecting wires
• Protection degree: IP 30 in standard conditions
• Dimensions: 49 x 49 x 21mm
• Weight: 38g
