VS116K

Power relay 1x16A switching; the output status is indicated by a color LED

1x 16A switching contact, AC 230V, AC/DC 24V

More

3D MODEL
Manufacturer: ELKO EP

Ord. code: VS116K
EAN: 8595188122580

Selling price 15,10 € incl. VAT -25% TOP
Price excl. VAT 9 €
Your price: from 10,90 € incl. VAT
Specify product selection
Variant does not exist
BlueGreenRedWhite

pcs

Description

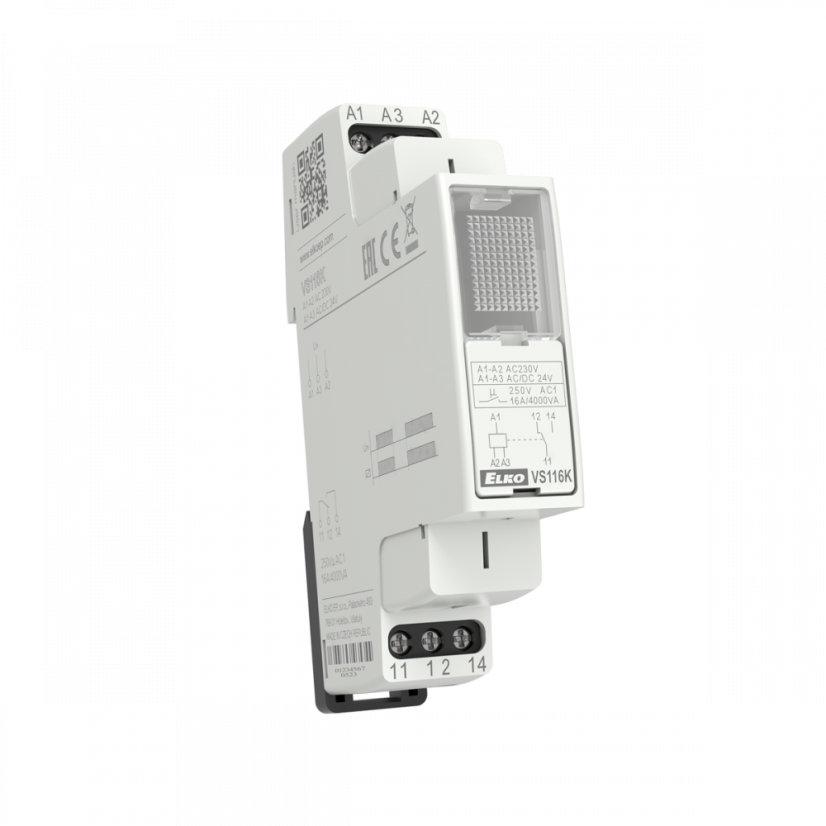

VS116K | Power relay

  • Power relay used for switching larger load output, strengthen, or „multiplying“ contacts of the existing device.
  • Relays VS316/24, VS316/230 enables connection to a 3-phase circuit.
  • In the design 1-MODULE, DIN rail mounting, output status indicated by high intensity LED with choice of LED color (red, green, yellow, blue or white LED - Choice of yellow, white or blue LED color for VS series power relays with a minimum quantity of 100 pieces.)
  • VS116/B230 MINI, mounting in installation box or ceilings, enabling switching of lights, motors for blinds or awnings.
  • For VS116/B230 status of output indicated by an LED on the front panel of the device.

More information

  • Supply terminals: A1 - A2
  • Burden: AC max. 7.5VA / 1W
  • Output indication: large-signal area
  • Operating temperature: -20°C to +55°C
  • Operating position: any
  • Mounting: DIN rail EN 60715
  • Dimensions: 90 x 17.6 x 64mm
  • Weight: 54g
