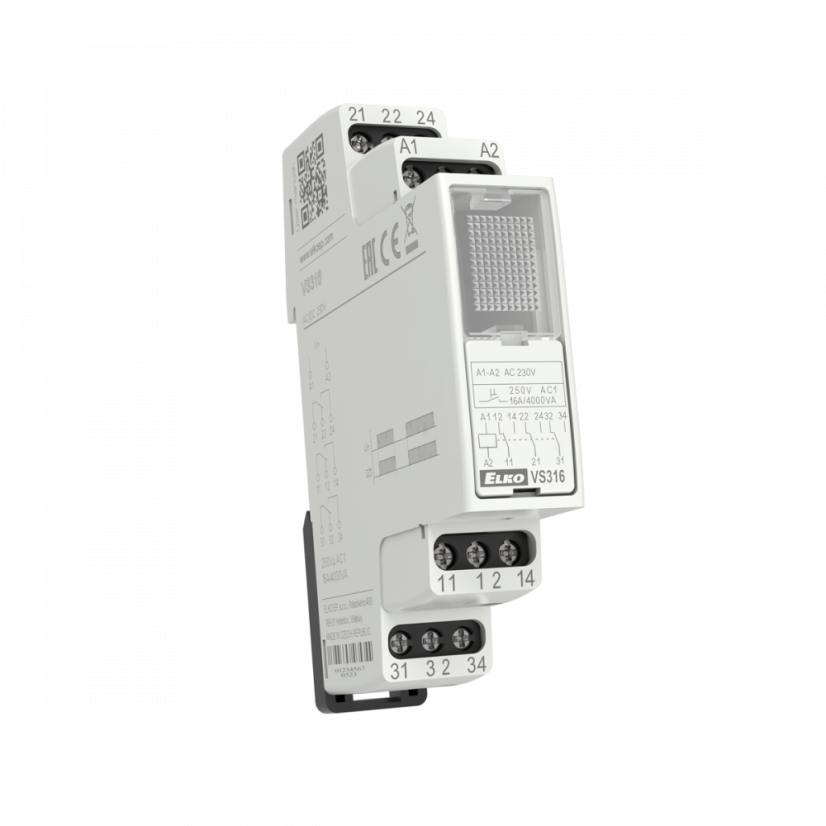

VS316
Power relay 3x 16A switching; the output status is indicated by a color LED
3x 16A switching; the output status is indicated by a color LED More
Manufacturer
Ord. code
VS316
Selling price
32,80 € incl. VAT
Price excl. VAT 18,51 €
Your price
from
22,40 €
incl. VAT
Description
VS316 | Power relay
- Power relay used for switching larger load output, strengthen, or „multiplying“ contacts of the existing device.
- Relays VS316/24, VS316/230 enables connection to a 3-phase circuit.
- In the design 1-MODULE, DIN rail mounting, output status indicated by high intensity LED with choice of LED color (red, green, blue or white LED - possibility to choose the blue, white and yellow color of LED for power relays line VS in case of minimum order quantity 100 pcs.).
- VS116/B230 MINI, mounting in installation box or ceilings, enabling switching of lights, motors for blinds or awnings.
For VS116/B230 status of output indicated by an LED on the front panel of the device.
More information
- Supply terminals: A1 - A2
- Burden: 1.6VA / 1.2W
- Output indication: large-signal area
- Operating temperature: -20°C to +55°C
- Operating position: any
- Mounting: DIN rail EN 60715
- Protection degree: IP40 from the front panel
- Weight: 90g
Documents
Parameters
| Power voltage | 24 V AC/DC, 230 V AC |
|---|---|
| Design | 1-MODULE |
| Output contact | 3 x changeover 16 A |
| Power voltage | 24 V AC/DC, 230 V AC |
|---|---|
| Design | 1-MODULE |
| Output contact | 3 x changeover 16 A |
