Description

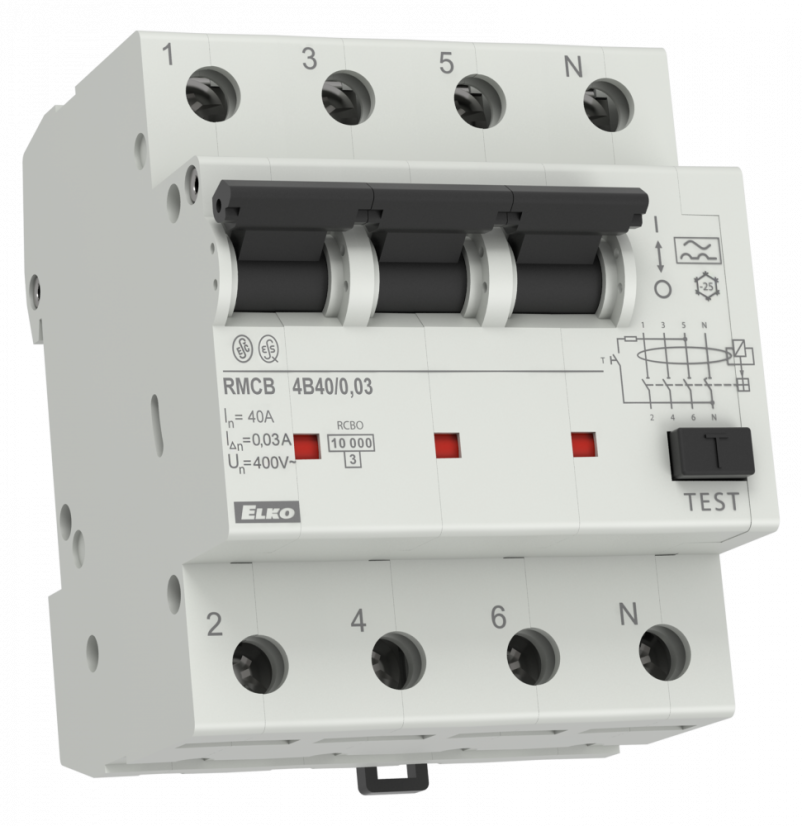

RMCB-4B/0,03 | Combinated Residual Current Circuit Breakers with Overcurrent Protection (RCCBO)
- The device is a combination of residual current circuit breaker and overcurrent protection for rated current 10, 13, 16, 20, 25, 32, 40 A.
- Type of differential current: AC and DC
- They are used in the house and similar installations.
- Protection against:
- in the even direct contact
- indirect contact
- fire
- overcurrents
- short circuit.
- The range of rated residual operating current is 0,03 A.
- Tripping characteristics B & C according to EN 61 009-1.
- Simple assembly with spring clamps to the strip 35 x 7,5 EN 60 715.
- Sealable in on and off position.
- Optical state indicator on the front side indicating the operation state of the device (green target visible – closed contacts, red target visible – opened contacts).
- Working position optional.
- There is a possibility to use auxiliary contacts.
- The device is compatible with MCB10 dimensions (according to module design)
| Characteristics | B |
|---|
