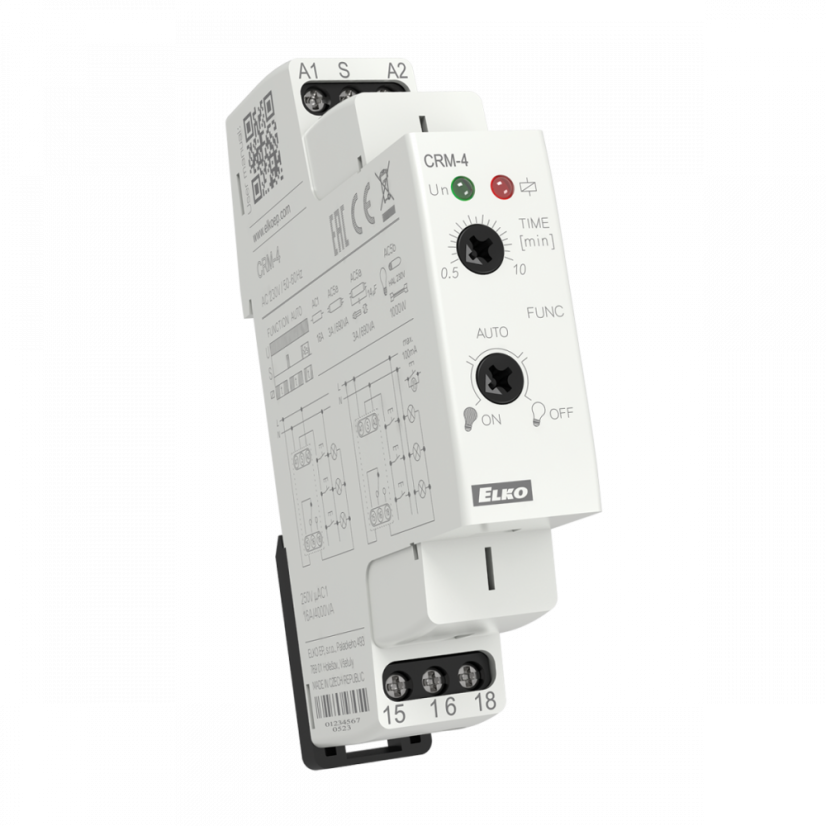

Used for delayed switching of lights in the corridors, entrances, stairways, halls, or for a delayed finish of fans (WC, bathroom, etc.).
It is controlled by a button or by several buttons from more places (connected in parallel), buttons can be equipped by glow lamps (max. 20pcs of glow lamps).
Output relay contacts 16A / AC1 with surge current up to 80A enables switching of bulbs and fluorescent lamps.
Operating system switch:
AUTO - normal function according to set time.
OFF - permanently OFF (e.g. when changing bulbs).
ON - permanently ON (e.g. while cleaning, servicing).
Time range: 0.5 - 10min.
Time setting by the potentiometer.
Protection against button blocking (e.g. a match inserted in a button).
More information
Function: delay-off reacting to control contact switching
Supply terminals: A1 - A2
Supply indication: green LED
Time setting: potentiometer
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP40 from front panel / IP20 terminals
