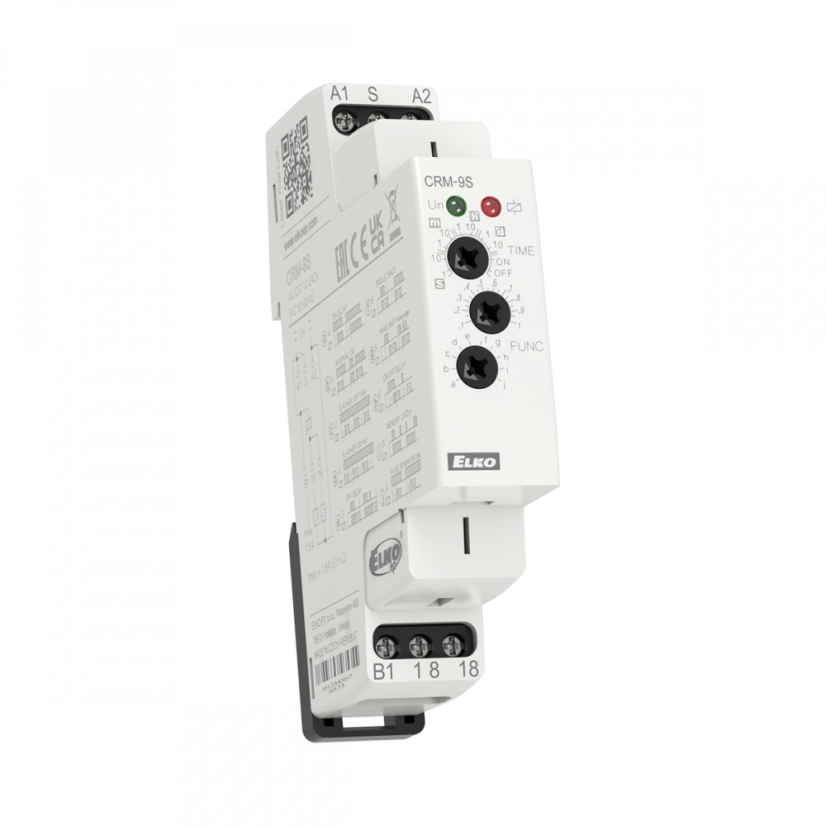

CRM-9S | Multifunction time relay - SSR

• Multifunction time relay for universal use in automation, control, and regulation or in-house installations
• Universal supply voltage AC/DC 12 – 240 V
• Noiseless switching output
• Comfortable and well-arranged function and time-range setting by rotary switches.
• Time scale 0.1 s - 10 days divided into 10 ranges:
  (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 h - 10 hrs / 0.1 day - 1 day / 1 day - 10 days / only ON / only OFF)
• Output contact: 1× static contactless output (triac) 1.5 A, switches potential A1
• Multifunction red LED flashes or shines depending on the operating states

More information

• Supply voltage: AC/DC 12 – 240 V  (50-60 Hz)
• Output contact: 1x static contactless output (triac), 1.5 A
• Functions available: 10
• Mounting: DIN rail EN 60715
• Protection degree: IP40 front panel / IP20 terminals
• Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
• Weight: 55 g (1.9 oz.)
