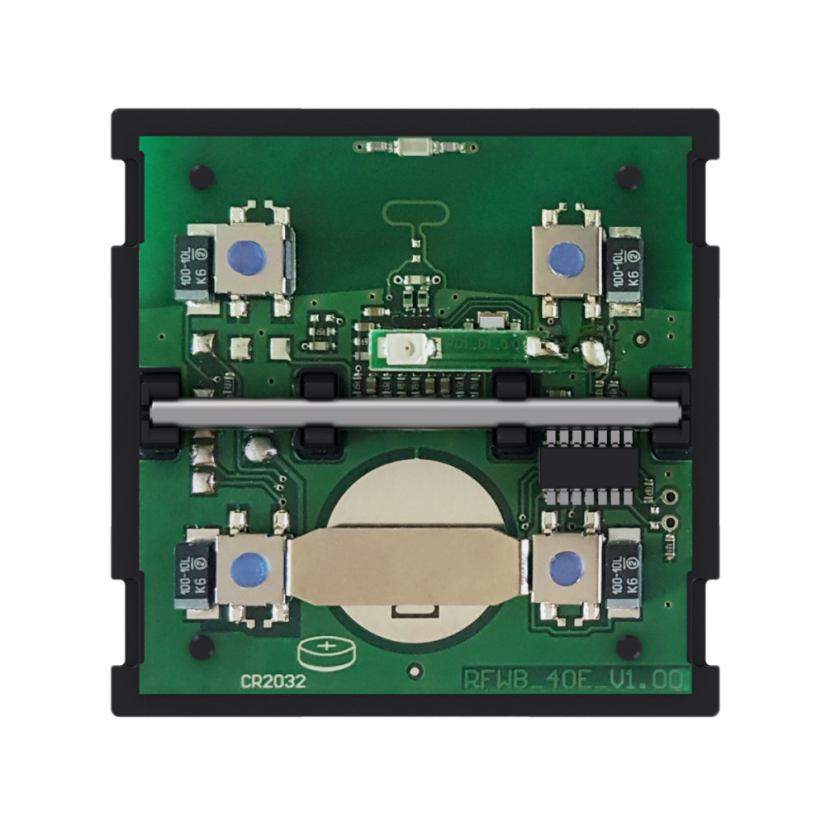

RF4060 / Electronics for RFWB-40/G: 4-channel wireless switch

You can assemble the complete controller in the original design. The set consists of: mechanism (movement) + frame + cover (button).

The wireless controller is used to control switches and dimmers (lights, barriers, gates, blinds).

•  The flat design with a flat base makes it ideal for quick installation on any surface (by gluing or screwing on the installation box).
•  When the button is pressed, it sends the set command (ON / OFF, dimming, time off / on, pull/pull).
•  Sending a command is indicated by a red LED.
•  Design of LOGUS90 switch frames (plastic, glass, wood, metal, stone).
•  4 buttons allow you to control 4 elements independently.
•  Possibility to set scenes where you can control more iNELS RF Control elements with one press.
•  Battery powered (3V / CR2032) with a lifespan of about 5 years according to the frequency of use (included in the package).
•  Range up to 200m (outdoors), in case of the insufficient signal between the controller and the element, use the RFRP-20 signal repeater.
•  Communication frequency with bidirectional protocol iNELS RF Control.
