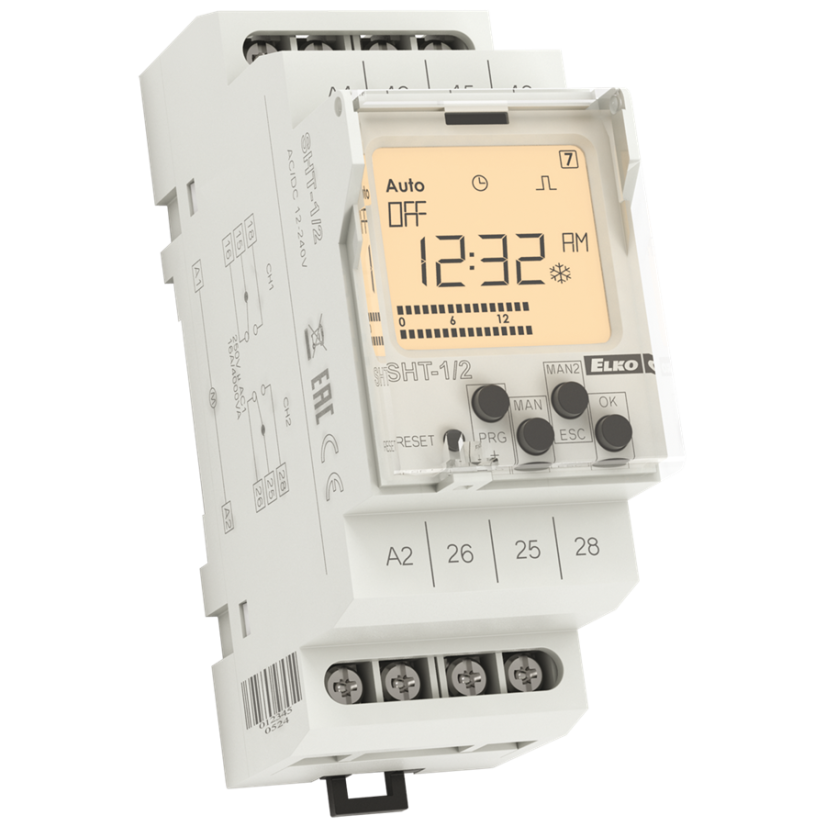

SHT-1/2 | Digital time switch clock

• Used to control various appliances depending on real-time, in daily, weekly and yearly mode (according to types, see table)
• Switching: according to the program (AUTO)/constantly manually, manually to the next program change/random (CUBE).
• „Holiday program” option to choose an interval when the device doesn´t switch according to the standard program but will be blocked during that time.
• Automatic conversion summer/winter time.
• Sealable cover of the front panel, easy controlling via 4 buttons.
• 100 memory places, clear LCD display, min. interval 1s.
• Voltage range: AC 230V or AC/DC 12 - 240V
• Power back-up: up to 3 years
• Cyclic output.
• Pulse output.

More information

• Supply terminals: A1 - A2
• Supply voltage tolerance: -15%; +10%
• Back-up supply: yes
• Summer/winter time: automatic
• Power back-up: up to 3 years
• Number of memory places: 100
• Data readout: LCD display, with backlight
• Operating temperature: -20°C to +55°C (-4°F to 131°F)
